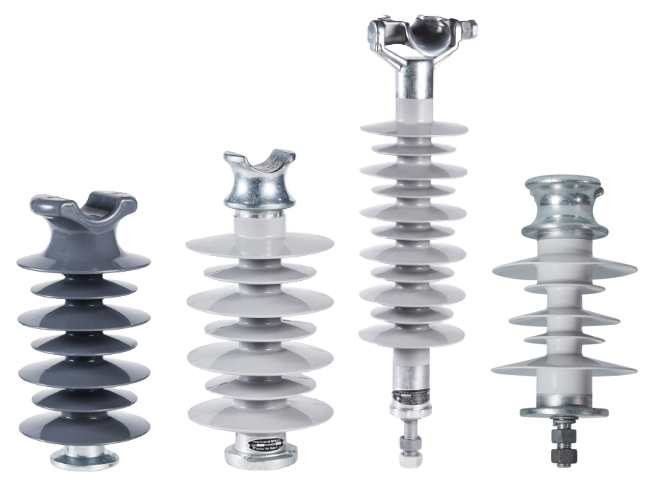

Polymer Pin Type Insulators

The polymer insulators manufactured by YIKUN ELECTRIC employ integral injection method and crimping technology between hardware fittings & glass-fiber core， checked by automatic flaw detection system. The metal fittings are sealed with four layers of high temperature silicone rubber to eliminate the brittle fracture fault caused by the sealing reason. By applying advanced equipment and strict production procedure, our polymer insulators can fully meet the technical requirements of GB/T19519 and IEC61109.

Product specifications
Product dimensions

Main Specifications of Typical Polymer Pin Type Insulators
No.	Type Code	Rated voltage kV	Structure Height mm	Leakage Distance mm	Arc Distance mm	Power Frequency Withstand Voltage, Dry ≥kV	Lightning Impulse Withstand Voltage ≥kV	Tension Load kN	Bending Load kN
1	LP4-12/12.5	12	249±5	500	180	60	98	10	5
2	FPW-24/12.5	24	305±5	680	220	65	170	20	12.5
3	FPW-24/12.5	24	305±5	680	220	80	170	20	12.5
4	FPW-24/10	24	317±5	750	260	90	170	20	10
5	FPW-36/10	36	430±5	1150	370	110	200	20	10
6	LP4-36/12.5	36	530±5	1190	400	110	235	20	12.5
