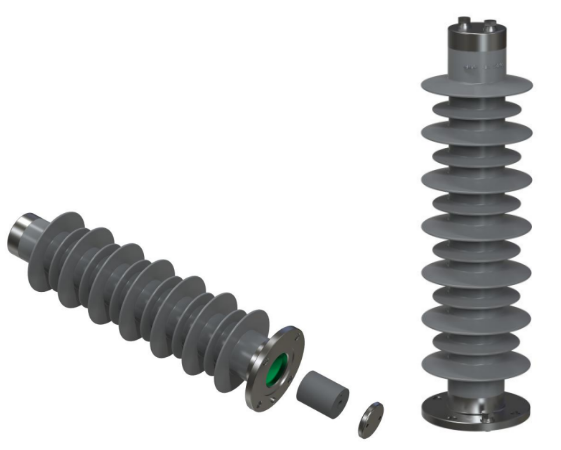

Integrated intelligent surge arrester
Highly integrated by primary and secondary devices, with the characteristics of digital measurement, viewable status, and integrated functions. Functional Features(1) The arrester body adopts high-performance zinc oxide varistors manufactured by advanced technology to ensure stable operation in harsh environments.(2) High-precision monitoring: built-in monitoring module, using advanced sensor and signal processing technology to provide accurate arrester monitoring data.(3) Intelligent management: with remote monitoring, data collection and fault warning functions, to fulfill surge arrester with real-time monitoring and management of device status.(4) Long service life, simple installation, no need for regular maintenance, reducing maintenance costs and labor costs.
  • Product specifications
  • Product dimensions
Main Parameters of Integrated Intelligent Surge Arrester
一、 Main Parameters of Surge Arrester
 Ur
(kV)
 MOCV
(kV)
 In
(kA)
  Ures Uref
(≥kV)
 DC Uref
(≥kV)
2ms rectangular current
(A)
4/10μs high current impulse
(kA)
Steep current impulse
(≤kV)
 Lightning impulse
(≤kV)

Switching current impulse
(≤kV)
423410118105894258800100
二、 Main Parameters of Digital Measurement
Whole leakage current
( Fundamental )
(mA)
3rd harmonic current
(mA)
Operation timesTemprature of Arrester Cavity
(℃)

Humidity of Arrester Cavity
(%)
0.1~500.01~100~9999-40~+800~100
