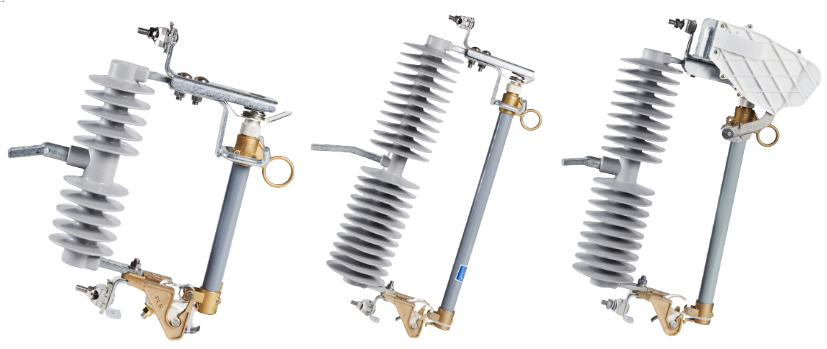

Polymer Fuse Cutout

Outdoor Dropout fuse cutout is used to protect distribution line and distribution transformer against overload and short-circuit damage as well as disconnecting equipment for A.C. system from 10kV to 38kV. It is developed considering the most common service conditions and applications, with following superb characteristics:1.Furnished with Arc-shortening rod (Extending rod) according to the rating of fuse cutout, enlarging the breaking capacity.2.Advanced design of fuse tube.3.Reliable and efficient current-carry path.4.All metal parts are procedure special treatment to be free from erosion and rust.All technical performances are compliance with GB/15166.3，IEC60282-2 and ANSI/ IEEE37.41.

Product specifications
Product dimensions

Main Specifications of Typical Polymer Fuse Cutout
No.	Type Code	Rated Voltage kV	Rated Current A	Creepage Distance mm	Breaking Capacity kA	Power Frequency Withstand Voltage, phase to ground ≥kV	Lightning Impulse Withstand Voltage ≥kV
1	15kV 100A	15	100	390	5/6.3/8/10/12.5	42/50	95
2	24kV 100A	24	100	660	5/6.3/8/10/12.5	55/65	150
3	36kV 100A	36	100	860	5/6.3/8/10/12.5	70/80	170
4	36kV 100A	36	100	1180	5/6.3/8/10/12.5	95/110	200
5	15kV 200A	15	200	390	5/6.3/8/10/12.5	42/50	95
6	24kV 200A	24	200	660	5/6.3/8/10/12.5	55/65	150
7	36kV 200A	36	200	860	5/6.3/8/10/12.5	70/80	170
8	36kV 200A	36	200	1180	5/6.3/8/10/12.5	95/110	200
9	24kV 100A (load break)	24	100	660	5/6.3/8/10/12.5	55/65	150
