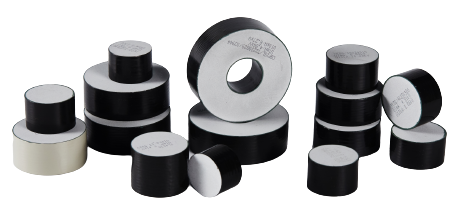

Metal Oxide Varistors (MOV)

Yikun Electric is specialized in manufacturing all kinds of metal oxide varistors suitable for 0.22kV ~ 500kV AC system overvoltage protection. Yikun Electric can also design and manufacture metal oxide vasitors suitable for special areas and applications according to the different needs of users.

Product specifications
Product dimensions

Main Specifications of MOV
No.	Size	Diameter mm	Height mm	Nominal Discharge Currnt, In, kA	Rating	U1mA DC kV	Ures (In), kV	Repetitive Charge Transfer, Qrs, C	2ms Rectangular current, A	High Current Impluse, kA
1	D28H20	28±0.5	20±0.5	5	3	4.8±0.3	8.4±0.5	0.2	100	60
2	D30H21	30±0.5	21±1.0	5	3	5.1±0.3	8.8±0.4	0.2	100	65
3	D32H21	31-32	21±0.5	5	3	5.0±0.3	8.7±0.5	0.2	150	65
4	D35H21	35±0.5	21±0.5	5	3	5.1±0.3	8.5±0.4	0.3	200/300	65
5	D38H21	38±0.5	21±0.5	10	3	5.1±0.3	9.3±0.4	0.3	300/350	95
6	D40H21	40±0.5	21±0.5	10	3	5.0±0.3	9.0±0.5	0.4	300/400	100
7	D40H31	40±0.5	31±0.5	10	4.5	7.0±0.3	12.7±0.5	0.4	300/400	100
8	D42H22	41-42	22±1.0	10	3	4.9±0.3	8.8±0.4	0.4	350/450	100
9	D44H27	44±0.5	27±0.5	10	4	6.0±0.3	10.5±0.5	0.5	500	100
10	D45H21	45±0.5	21±0.5	10	3	5.0±0.3	8.9±0.5	1.0	500/550	100
11	D46H21	46±0.5	21±0.5	10	3	5.0±0.3	8.9±0.5	1.0	500/600	100
12	D48H21	48±0.5	21±0.5	10	3	5.1±0.3	8.8±0.5	1.0	550/600	100
13	D48H26	48±0.5	26-27	10	4.5	6.3-6.8	11.5±0.5	1.0	550/600	100
14	D52H24	52±0.5	24±0.5	10	3	5.2±0.3	9.0±0.4	1.0/1.6	600/800	100
15	D62H22	62±0.5	22±0.5	10	3	5.0±0.3	8.5±0.5	2.0	850/1000	100
16	D62H31	62±0.5	31±0.5	10	4.5	7.0±0.3	12±0.5	2.0	850/1000	100
17	D72H22	71-72	22±0.5	10	3	4.8±0.3	8.1±0.4	2.0	1100	100
18	D76H22	76±0.5	22±0.5	20	3	4.8±0.3	8.5±0.4	2.8	1400	100
19	D85H22	85±0.5	22±0.5	20	3	4.8±0.3	8.3±0.5	3.6	1800	100
20	D72/D26H22.5	OD: 71-72 ID: 26±0.5	22±0.5	10	3	4.9±0.3	8.1±0.4	2.0	1100	100
21	D115/D42H24	OD:114-116 ID:42±0.5	24±1.0	20	3	4.8±0.3	8.3±0.5	4.4	2200	100
