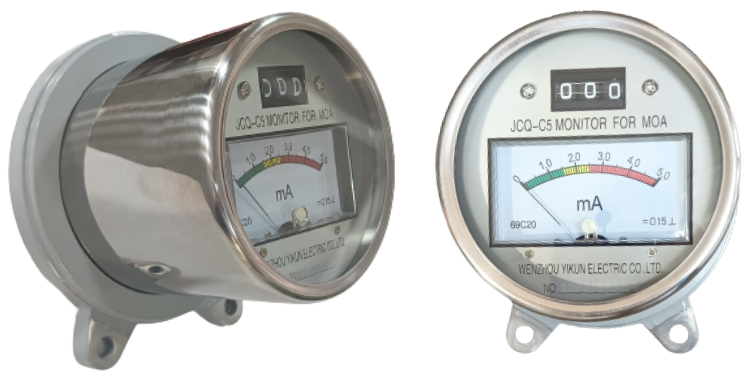

on-line monitors (Surge counter)

It has the function of displaying the leakage current and recording the discharge times in real time. Field people will know the operation status of arrester in time by observing the data shows on the online monitor, and identify potential hazards in time.

Product specifications
Product dimensions

Main Data of On-line Monitors
No.	Items	Type Code	In kA	Operation Current Range A	Counting Range 次	Residual Voltage at In (peak） ≤kV	2ms rectangular current （peak） A	4/10μs high current impulse （peak） kA	Leakage Current Range mA	Other functions
1	On-line monitor	JCQ-C5	10	50～10000	0～999 or 0～99999	3	800	100	0～3	Leakage current: 3-color warning mark, optional functions: live display & alarm light
2	On-line monitor	JCQ-C5	10	50～10000	0～999 or 0～99999	3	800	100	0～5	Leakage current: 3-color warning mark, optional functions: live display & alarm light
